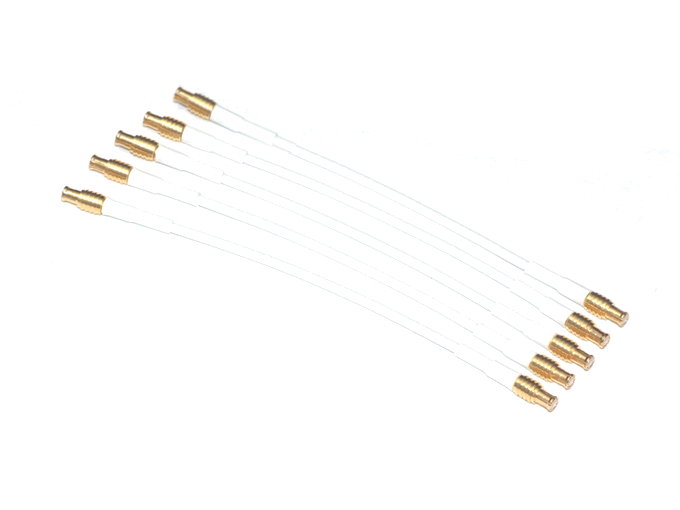

RF Pigtail Cable/FM (Flight Model)

RF Pigtail Cable

Space-Friendly™ RF Coaxial Cable


An essential part of each RF equipment chain is a high quality coaxial cable carrying DC, AC or DC+AC power. Save your time and reduce risk with custom-made coaxial RF cables with TRL-9 crimping quality. Choose the required tip-to-tip length and select coaxial connectors required (SMA, MCX, MMCX, right angle or straight and its combinations) from various trusted suppliers such as Amphenol, Huber+Suhner or Molex. Consider a minimum recommended bending radius of 20 mm, pricing specified for lengths up to 500 mm.




Part Number: RF Pigtail/FM (Flight Model)




Product Summary

  • RF Coaxial Cable
  • 50 Ohms impedance
  • Crimped with MMCX-M, MCX-M or SMA-M connectors
  • Straight or Right Angle connectors
  • Custom length L up to 500 mm tip-to-tip, longer on request
  • TRL-9 ("Flight-proven")
  • RG-316 cable (white), Silver Plated Copper Covered Steel, FEP jacket
  • Ideal for RF applications 0.01 - 10 GHz (HF, VHF, UHF, L-band, S-band)
  • Supporting power levels up to 50 dBm (100W)



  • Dual Use Goods: YES
  • HS Code: 8544.42.90
  • Lead Time: 2-4 Weeks + Shipping
  • Country of Origin: Czech Republic
