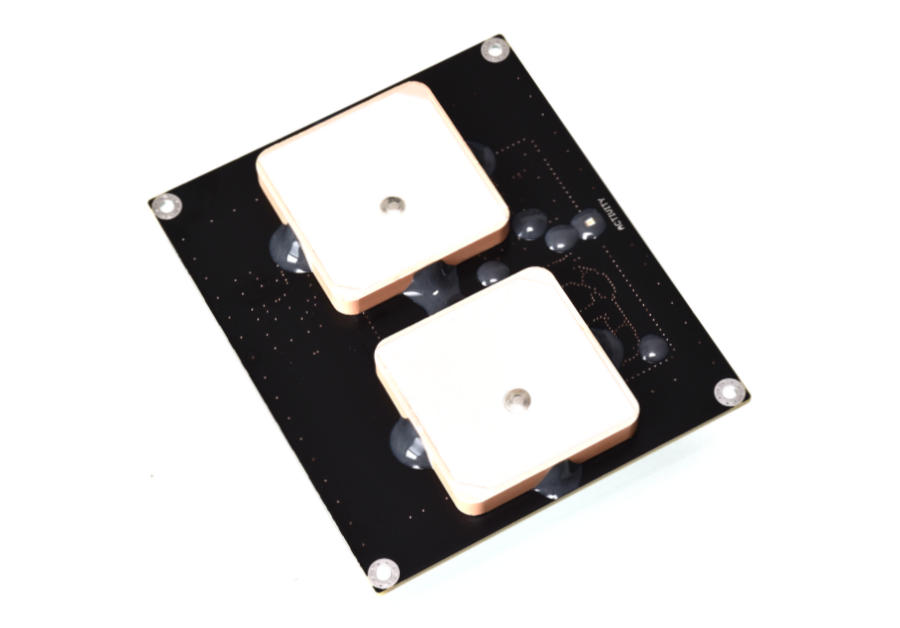

piADSB-NG/FM (Flight Model)

Space-Friendly™ CubeSat ADS-B Receiver

The piADSB-NG is a Next Generation CubeSat ADS-B Air Traffic Control (ATC) Receiver based on freely available 1090ES Squitters transmitted from aircrafts. The next generation RF chain with Improved Demodulator Sensitivity, Telemetry Engine and Squitter Counter with an ASCII output via serial UART channel is a compact solution including antenna array with No Deployables!

Train your ATC skills, build and run your own private Constellation for Aircraft Monitoring from Space or build an experimental Search and Rescue Space-based Node as an Univesity project. All possible now with piADSB-NG!

Part Number: piADSB-NG/FM (Flight Model)

Product Summary

• CubeSat ADS-B System with Embedded Antenna Array
• Automatic Dependent Surveillance – Broadcast (ADS-B) Receiver, Mode-S 1090ES, 1090 MHz
• Improved sensitivity, Packet Counter, Telemetry Engine
• 56bit, 112bit Extended Squitters + CRC filters
• Civil Downlink Format 11, 17 (DF11, DF17) Output
• Highly Sensitive, Ultra Low Power, World's Lowest Profile
• Sensitivity: up to -106 dBm (10^-2 BER)
• Up to 2000 km slant range, up to 33000 fpm
• Intended to: LEO up to h = 600 km
• TRL 9 since 2019
• Mega-Constellation Ready! product
• Power Requirement: 2.7-3.6 V @ 75 mA (250 mW)
• UART 230400-8-N-1, 3V3-CMOS levels
• Dimensions: 98x82.6x12.5 mm
• Wide Temperature Range: -40˚C to +85˚C
• PicoBlade™ 1.25 6P connector (Power + Data)
• Low mass 124 grams

• Dual Use Goods: YES
• HS Code: 8526.10.00.90
• Lead Time: 2-4 weeks + Shipping
• Country of Origin: Czech Republic

Pricing (EUR)

Qty.  Unit Price  Ext. Price​
1:    4890 €      4890 €
3:    4400 €      13200 €
5:    4300 €      21500 €
10+:  3800 €      38000 €

piADSB-NG/EM (Engineering Model)

As the Space-based long distance (free space loss -148dB @ 1090MHz, 550 km range) ADS-B link budget is set to be extremely tight (~ -90 to -100dBm level only! at the 550 km slant range signal level with 750W transponder), a special care have to be taken to the EMC/EMI environment in order to maximize the receiver sensitivity yield.

To test whether the satellite bus subsystems, flatsat or satellite qualification model (magnetorquers, MPPT solar controllers, DC/DC converters, transmitters, mixers, local oscillators, etc.) are not affecting the piADSB-NG system noisefloor, the Engineering Model grade with identical electrical and RF properties is available. It is highly recommended to run the test before the flight and observe whether the fully operational satellite is not limiting the maximum available range/frame rate in open space or using ADS-B 1090 MHz squitter test signal generator.

Part Number: piADSB-NG/EM (Engineering Model)

Product Summary

• CubeSat ADS-B System Engineering (FlatSat) Model
• Automatic Dependent Surveillance – Broadcast (ADS-B) Receiver, Mode-S 1090ES, 1090 MHz
• Improved sensitivity, Packet Counter, Telemetry Engine
• 56bit, 112bit Extended Squitters + CRC filters
• Civil Downlink Format 11, 17 (DF11, DF17) Output
• Highly Sensitive, Ultra Low Power
• Sensitivity: up to -106 dBm (10^-2 BER)
• Up to 2000 km slant range, up to 600 fpm
• Intended to: LEO up to h = 600 km
• Mega-Constellation Ready! product
• Power Requirement: 2.7-3.6 V @ 75 mA (250 mW)
• UART 230400-8-N-1, 3V3-CMOS levels
• Ultra Low Profile and Dimensions: 98x82.6x12.5 mm
• Wide Temperature Range: -40˚C to +85˚C
• PicoBlade™ 1.25 6P connector (Power + Data)
• Low mass 124 grams

• Dual Use Goods: YES
• HS Code: 8526.10.00.90
• Lead Time: 2-4 weeks + Shipping
• Country of Origin: Czech Republic

piADSB-NG/EK (Evaluation Kit)

The piADSB-NG Evaluation Kit is the Full Set of Hardware making the integration of the CubeSat ADS-B Receiver System Quick & Easy job!

Connect it with the FTDI USB-to-Serial cable and standard PC Serial Terminal software to catch and display your first On Air ATC Traffic ADS-B Squitters. It will allow you to deploy, connect and operate all piADSB-NG features easily!

Part Number: piADSB-NG/EK (Evaluation Kit)

Product Summary

• piADSB-NG Evaluation Board with TXD, RXD indicating LEDs
• Test pins ready for Oscilloscope Probe hooks
• 300 mm long, 3-wire harness with Molex and 2.54 mm (0.1") connectors, Engineering Model, for interconnection of the piADSB-NG Unit and the Evaluation Kit
• 4x M3 Polyimide standoffs for the Eval Kit PCB
• Header for the external USB-to-TTL serial cable connector
• FTDI Serial-to-USB Cable included
• Power-ON logic switch demonstrator
• Powered and operated directly from USB port i.e. from portable PC
• Dimensions: 88x97 mm

• Dual Use Goods: YES
• HS Code: 8473.3020
• Lead Time: 1-3 weeks + Shipping
• Country of Origin: Czech Republic
