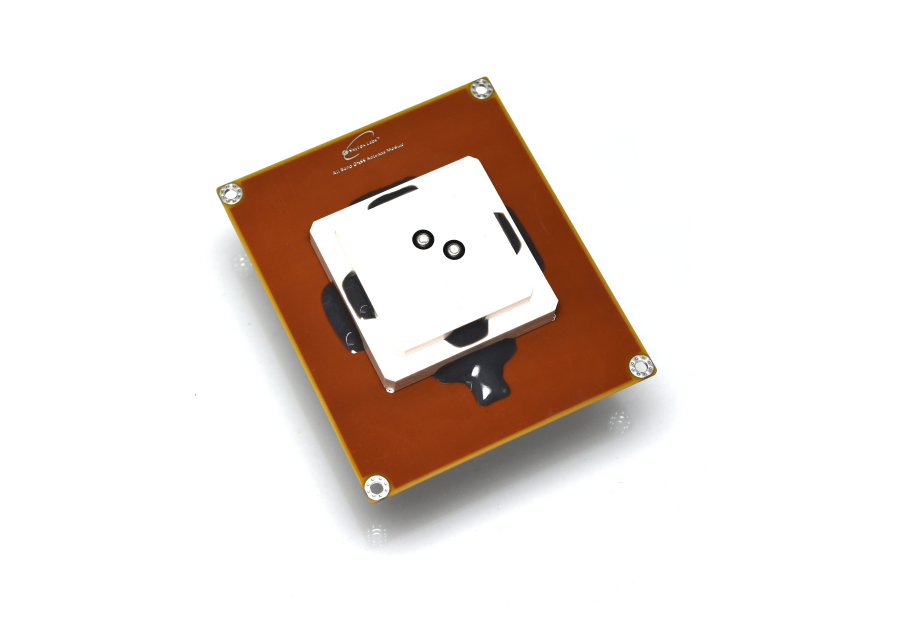

piPATCH-AllBand/FM (Flight Model)

piPATCH-AllBand

Space-Friendly™ GNSS ALL BAND Antenna

Get maximum precision out of your GNSS Equipment onboard! Enable new level of navigation! Are you looking for a high gain CubeSat GNSS ALL BAND Antenna supporting GPS, GLONASS, Galileo, BeiDou constellation receiver equipment? Get maximum precision out of your GNSS receiver using All Band Antenna and centimeter operations grade! Use all GPS-L1 + GPS-L2 + GPS-L5, GALILEO-E1, GALILEO-E5a, GALILEO-E5b, GLONASS-G1, GLONASS-G2, GLONASS-G3, BeiDou-B1, BeiDou-B2a, BeiDou-B2b bands.

The piPATCH-AllBand is a Top Notch, High Gain Antenna with low noise, RF filters and uniform hemispherical radiation pattern intended for a X/Y +/- CubeSat walls. The antenna is ideal for Nadir/Zenith oriented satellites such as ground-scanning telescope missions, ensuring the orientation towards the GNSS zenith with a X/Y-face.

The module size 98x82.6 mm and low profile is ideal for standard CubeSat structure envelopes with up to 25 mm side wall gaps (protrusion from rail margins). Connect the RF Coaxial cable with DC power from 2.7 to 5.5V and start to receive first signals from GNSS constellations with your multi-frequency Precise Navigation Receiver in minutes. New era of Satellite Docking and Formation Flying is here!

Part Number: piPATCH-AllBand/FM (Flight Model)



Product Summary

  • ACTIVE All Band CubeSat GNSS Antenna with LNAs
  • GPS L1 49-51+ dBc-Hz SNR for close-to-zenith satellites
  • GPS L2 45-50+ dBc-Hz SNR for close-to-zenith satellites
  • GPS L5 45-50+ dBc-Hz SNR for close-to-zenith satellites
  • GLONASS G1 45-53+ dBc-Hz SNR for close-to-zenith satellites
  • GLONASS G2 45-50+ dBc-Hz SNR for close-to-zenith satellites
  • GLONASS G3 45-50+ dBc-Hz SNR for close-to-zenith satellites
  • Galileo E1 48-51+ dBc-Hz SNR for close-to-zenith satellites
  • Galileo E5a 48-51+ dBc-Hz SNR for close-to-zenith satellites
  • Galileo E5b 45-48+ dBc-Hz SNR for close-to-zenith satellites
  • BeiDou B1 45-48+ dBc-Hz SNR for close-to-zenith satellites
  • BeiDou B2a 45-48+ dBc-Hz SNR for close-to-zenith satellites
  • BeiDou B2b 45-48+ dBc-Hz SNR for close-to-zenith satellites
  • Bands Covered: GPS L1, GPS L2, GPS L3, GLONASS G1, GLONASS G2, GLONASS G3, Galileo E1, Galileo E5a, Galileo E5b, BeiDou B1, BeiDou B2a, BeiDou B2b
  • Patch Antenna Active Input-to-Output RF Lower Band and Upper Band path gains better than +20 dB
  • Dimensions: 98x82.6 mm, low profile, MCX-F connector
  • Mass: 133 grams (excluding mounting screws)
  • Fits all known CubeSat structures (ideal for X/Y +/- mount) and up to 25 mm CubeSat Protrusion Deployers
  • Mounting hole position modification FREE on Request
  • 2.7 to 5.5V power supply, 3.3 V nominal @ ~30 mA
  • SAW Filters, EMI shielding
  • Powered via RF Coax



  • Dual Use Goods: YES
  • HS Code: 8529.10.69
  • Lead Time: 2-4 Weeks + Shipping
  • Country of Origin: Czech Republic



Pricing (EUR)

Qty.  Unit Price  Ext. Price​
1:    3900 €      3900 €
2:    3380 €      6760 €
3+:   2980 €      8940 €
Price: 3900 EUR

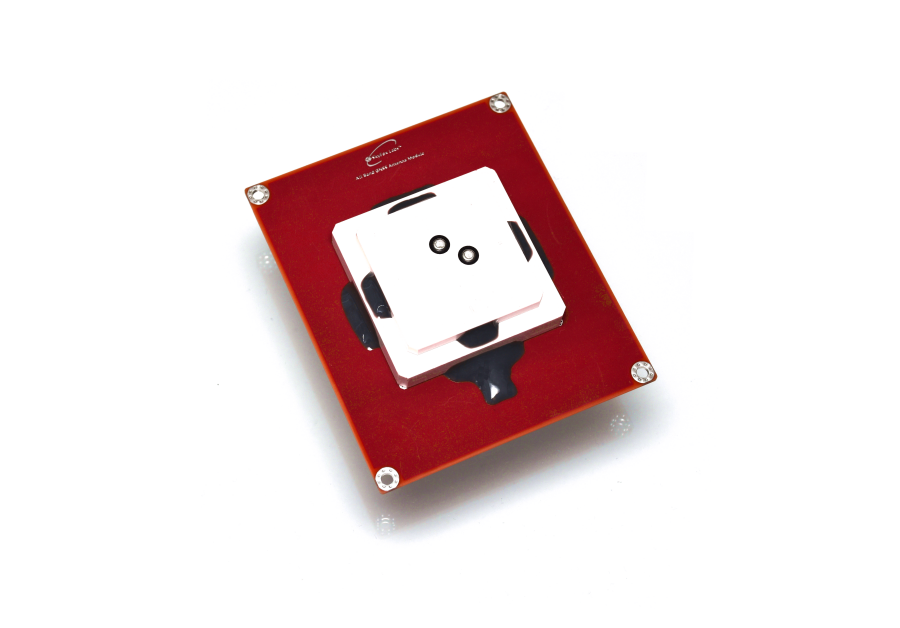

piPATCH-AllBand/EM (Engineering Model)

piPATCH-AllBand

Each GNSS receiver is extremelly sensitive to EMI/EMC environment on the satellite. Check that the GNSS functionality is not disturbed by the satellite subsystems (Power Supplies, MPPT Controllers, Magnetorquers, Reaction Wheels, transmitters, receivers with local oscillators, all the PWM driven electronics,...) well before the spaceflight. The Signal-to-Noise Ratio (SNR) Test can be performed easily with the fully functional Engineering Model of the antenna anytime during the whole satellite development and testing campaign.

It is also ready to be connected to the Flight Model of the GNSS Receiver. Red Remove Before Flight finish will remind you to replace it with the Flight Model of the antenna before the launch.

Part Number: piPATCH-AllBand/EM (Engineering Model)

Product Summary

  • ACTIVE CubeSat GNSS All Band Antenna with LNAs
  • GPS L1 49-51+ dBc-Hz SNR for close-to-zenith satellites
  • GPS L2 45-50+ dBc-Hz SNR for close-to-zenith satellites
  • GPS L5 45-50+ dBc-Hz SNR for close-to-zenith satellites
  • GLONASS G1 45-53+ dBc-Hz SNR for close-to-zenith satellites
  • GLONASS G2 45-50+ dBc-Hz SNR for close-to-zenith satellites
  • GLONASS G3 45-50+ dBc-Hz SNR for close-to-zenith satellites
  • Galileo E1 48-51+ dBc-Hz SNR for close-to-zenith satellites
  • Galileo E5a 48-51+ dBc-Hz SNR for close-to-zenith satellites
  • Galileo E5b 45-48+ dBc-Hz SNR for close-to-zenith satellites
  • BeiDou B1 45-48+ dBc-Hz SNR for close-to-zenith satellites
  • BeiDou B2a 45-48+ dBc-Hz SNR for close-to-zenith satellites
  • BeiDou B2b 45-48+ dBc-Hz SNR for close-to-zenith satellites
  • Bands Covered: GPS L1, GPS L2, GPS L3, GLONASS G1, GLONASS G2, GLONASS G3, Galileo E1, Galileo E5a, Galileo E5b, BeiDou B1, BeiDou B2a, BeiDou B2b
  • Patch Antenna Active Input-to-Output RF Lower Band and Upper Band path gains better than +20 dB
  • Dimensions: 98x82.6 mm, low profile, MCX-F connector
  • Mass: 133 grams (excluding mounting screws)
  • Functional Engineering Model for satellite development
  • Engineering Model with red Remove Before Flight finish
  • Fits all known CubeSat structures (ideal for X/Y +/- mount) and 25 mm CubeSat Protrusion Deployers
  • Mounting Holes Position Modification FREE on Request
  • 2.7 to 5.5V power supply, 3.3 V nominal @ ~30 mA
  • SAW Filters, EMI shielding
  • Powered via RF Coax



  • Dual Use Goods: YES
  • HS Code: 8529.10.69
  • Lead Time: 2-4 Weeks + Shipping
  • Country of Origin: Czech Republic
Price: 2390 EUR
