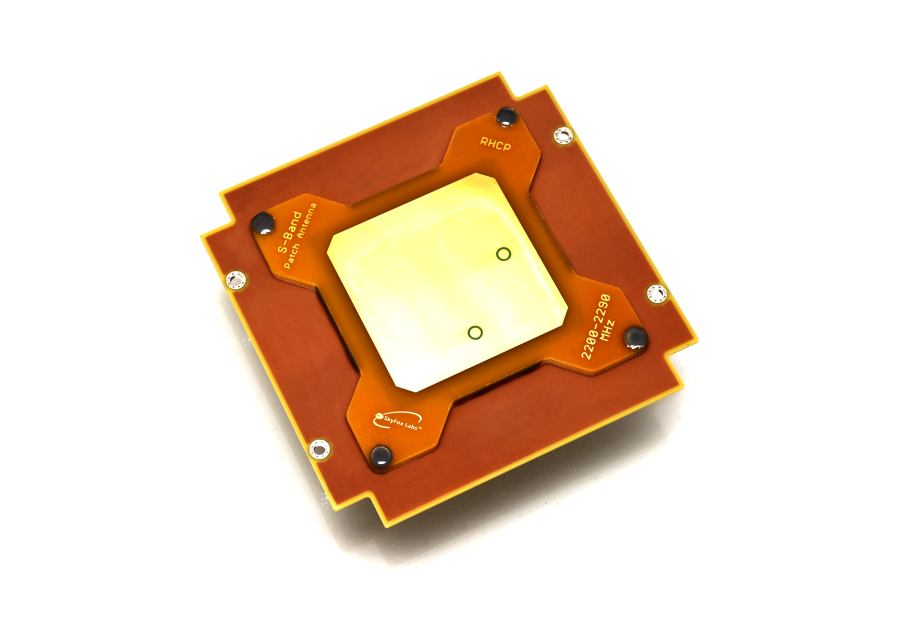

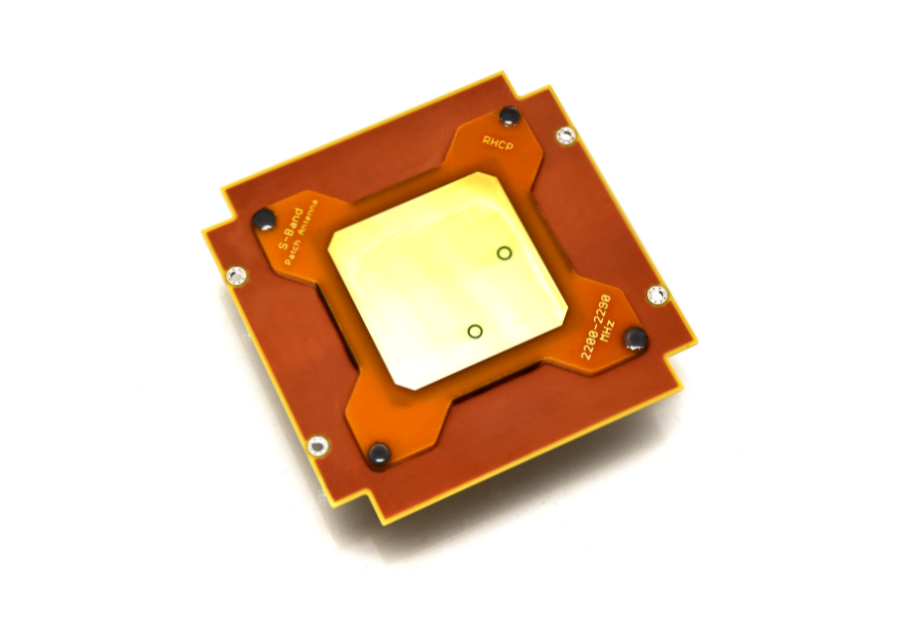

piPATCH-S-DL/FM (Flight Model)

Space-Friendly™ S-Band RHCP Downlink Antenna

The piPATCH-S-DL is a World's First Space-Friendly Highly Radiation Efficient ZeroCore CubeSat Patch Antenna working in the whole S-Downlink Band (2200-2290 MHz) intended for High Data Rate satellite communication systems. S11 parameter is set to -10dB at least over the whole range, with peak of -20dB response. The RHCP (Right Hand Circular Polarization) is achieved using hybrid 0/90° phasing module implemented on the module level.

Part Number: piPATCH-S-DL/FM (Flight Model)

Product Summary

• CubeSat S-Band RHCP Downlink Antenna Module
• Tuned to 2200-2290 MHz Range
• 10W CW Power Handling Capability
• Gain: +4 dBiC, +7 dBi
• Grounded radiating element for ESD plasma pickup discharge
• Mega-Constellation Ready! product
• 50 Ohm Input Impedance, MCX-Female Right Angle Connector
• Dimensions: 98x98x+6/-8 mm
• Wide Temperature Range: -40˚C to +85˚C
• Low mass: 70 grams

• Dual Use Goods: YES
• HS Code: 8517.7100
• Lead Time: 2-4 weeks + Shipping
• Country of Origin: Czech Republic

Pricing (EUR)

Qty.  Unit Price  Ext. Price​
1:    2890 €      2890 €
2:    2610 €      5220 €
3+:   2430 €      7290 €
