piPATCH-ADSB/FM (Flight Model)
Space-Friendly™ ADS-B Antenna.
Get maximum ADS-B Squitter Capture out of your own ADS-B receiver onboard! Enable a new level of data harvesting!
Are you looking for a high-gain CubeSat ADS-B Antenna for your own space-borne aircraft tracking system? The piPATCH-ADSB covers 1090 MHz band via dedicated antenna array connected to the receiver via single RF port.
TOP Ceramics. | Maximum Reach.

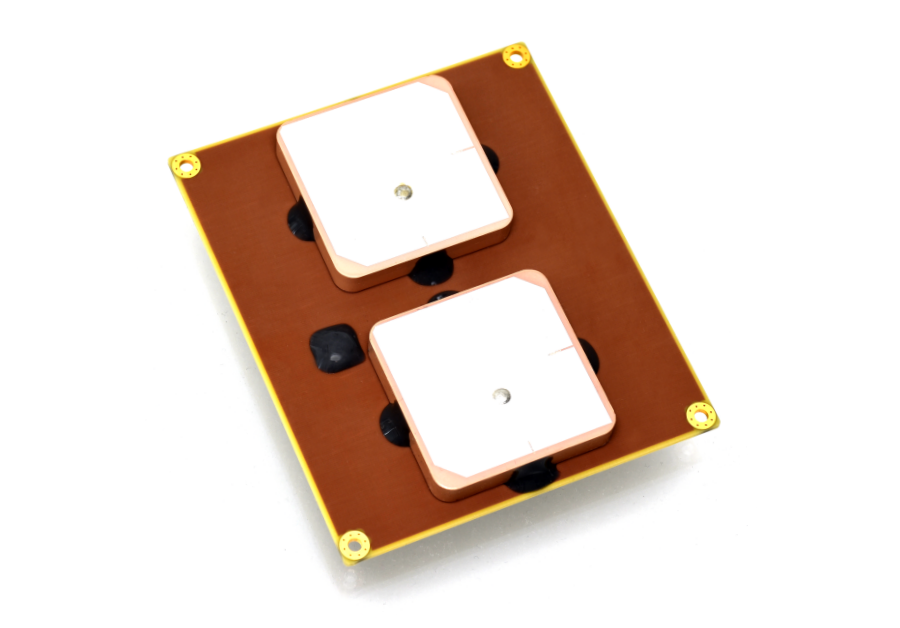

The piPATCH-ADSB is a Top Notch, High Gain RHCP (Right Hand Circular Polarization) Antenna array with a uniform hemispherical radiation pattern intended for CubeSat installations. The antenna is ideal for Nadir/Zenith oriented satellites such as ground-scanning telescope missions, ensuring the orientation towards the terrestrial sources with a X/Y-face.
Automatic Dependent Surveillance - Broadcast
The module size 98x82.6 mm and low profile is ideal for standard CubeSat structure envelopes with at least 10 mm side wall Deployer protrusion. Cover the ADS-B signals from your satellite platform Globally using Single Antenna Unit!
Part Number: piPATCH-ADSB/FM (Flight Model)
Product Summary
- High Gain Non-Deployable ADS-B Antenna
- Operating frequency 1090MHz (center), 50 Ohms
- Single RF Port
- Dimensions: 98x82.6x(+8)/(-4) mm, low profile, MCX-F connector
- Mass: 115 grams (excluding mounting screws)
- Fits Deployers with 10 mm side protrusions such as Exopod Nova
- Mounting hole position modification FREE on Request
- RF Coupler, EMI shielding
- Dual Use Goods: YES
- HS Code: 8529.10.69
- Lead Time: 2-4 Weeks + Shipping
- Country of Origin: Czech Republic
Pricing (EUR)
Qty. Unit Price Ext. Price 1: 2390 € 2390 € 2: 2190 € 4380 € 3+: 1990 € 5970 €
Want this for your project? → Contact us.
piPATCH-ADSB/OEM (Flight Model)
OEM Version. | More Yours.
Get maximum ADS-B Squitter Capture out of your own ADS-B receiver onboard! Enable a new level of data harvesting!
Are you looking for a high-gain CubeSat ADS-B Antenna for your own space-borne aircraft tracking system? The piPATCH-ADSB covers 1090 MHz band via dedicated antenna array connected to the receiver via single RF port.
TOP Ceramics. | Maximum Reach.
The piPATCH-ADSB is a Top Notch, High Gain RHCP (Right Hand Circular Polarization) Antenna array with a uniform hemispherical radiation pattern intended for CubeSat installations. The antenna is ideal for Nadir/Zenith oriented satellites such as ground-scanning telescope missions, ensuring the orientation towards the terrestrial sources with a X/Y-face.
Automatic Dependent Surveillance - Broadcast
The module size 98x82.6 mm and low profile is ideal for standard CubeSat structure envelopes with at least 10 mm side wall Deployer protrusion. Cover the ADS-B signals from your satellite platform Globally using Single Antenna Unit!
Part Number: piPATCH-ADSB/OEM (OEM Flight Model)
Product Summary
- High Gain Non-Deployable ADS-B Antenna
- Operating frequency 1090MHz (center), 50 Ohms
- Single RF Port
- Dimensions: 98x82.6x(+8)/(-4) mm, low profile, MCX-F connector
- No logos or markings
- Mass: 115 grams (excluding mounting screws)
- Fits Deployers with 10 mm side protrusions such as Exopod Nova
- Mounting hole position modification FREE on Request
- RF Coupler, EMI shielding
- Dual Use Goods: YES
- HS Code: 8529.10.69
- Lead Time: 2-4 Weeks + Shipping
- Country of Origin: Czech Republic
Pricing (EUR)
Qty. Unit Price Ext. Price 1: 2950 € 2950 € 2: 2780 € 5560 € 3+: 2530 € 7590 €
Want this for your project? → Contact us.
